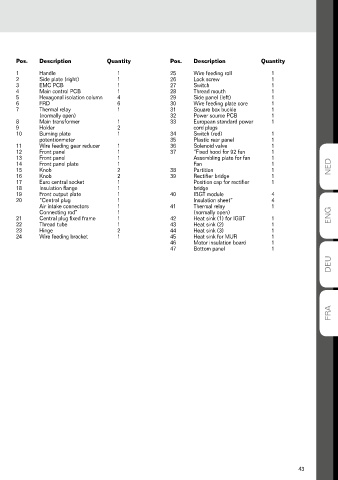

Pos. Description Quantity Pos. Description Quantity
1 Handle 1 25 Wire feeding roll 1
2 Side plate (right) 1 26 Lock screw 1
3 EMC PCB 1 27 Switch 1
4 Main control PCB 1 28 Thread mouth 1
5 Hexagonal isolation column 4 29 Side panel (left) 1
6 FRD 6 30 Wire feeding plate core 1
7 Thermal relay 1 31 Square box buckle 1
(normally open) 32 Power source PCB 1
8 Main transformer 1 33 European standard power 1
9 Holder 2 cord plugs
10 Burning plate 1 34 Switch (red) 1
potentionmeter 35 Plastic rear panel 1
11 Wire feeding gear reducer 1 36 Solenoid valve 1
12 Front panel 1 37 “Fixed hood for 92 fan 1
13 Front panel 1 Assembling plate for fan 1
14 Front panel plate 1 Fan 1 ned
15 Knob 2 38 Partition 1
16 Knob 2 39 Rectifier bridge 1
17 Euro central socket 1 Position cap for rectifier 1
18 Insulation flange 1 bridge
19 Front output plate 1 40 IBGT module 4
20 “Central plug 1 Insulation sheet” 4
Air intake connectors 1 41 Thermal relay 1
Connecting rod” 1 (normally open)
21 Central plug fixed frame 1 42 Heat sink (1) for IGBT 1 eng
22 Thread tube 1 43 Heat sink (2) 1
23 Hinge 2 44 Heat sink (3) 1
24 Wire feeding bracket 1 45 Heat sink for MUR 1
46 Motor insulation board 1
47 Bottom panel 1
deu

fra

43
