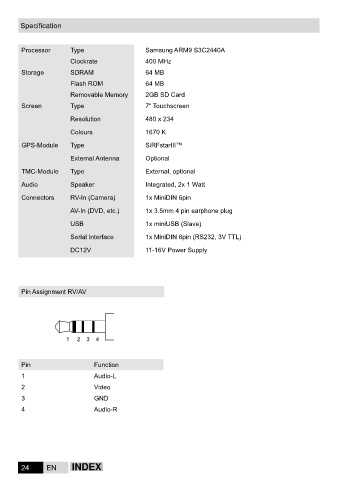

Specification

Processor Type Samsung ARM9 S C2 0A
Clockrate 00 MHz
Storage SDRAM 6 MB
Flash ROM 6 MB
Removable Memory 2GB SD Card
Screen Type 7“ Touchscreen
Resolution 80 x 2
Colours 1670 K
GPS-Module Type SiRFstarIII™
External Antenna Optional
TMC-Module Type External, optional
Audio Speaker Integrated, 2x 1 Watt
Connectors RV-In (Camera) 1x MiniDIN 6pin
AV-In (DVD, etc.) 1x . mm pin earphone plug
USB 1x miniUSB (Slave)
Serial Interface 1x MiniDIN 6pin (RS2 2, V TTL)
DC12V 11-16V Power Supply

Pin Assignment RV/AV

1 2

Pin Function
1 Audio-L
2 Video
GND
Audio-R
