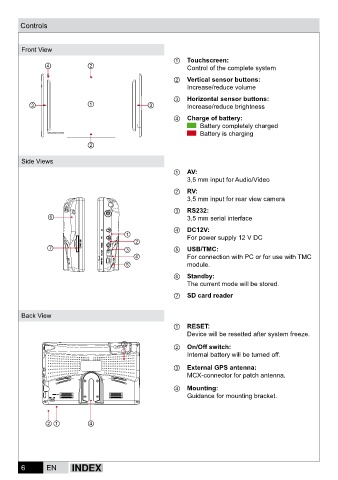

Controls

Front View
① Touchscreen:
Control of the complete system
② Vertical sensor buttons:
Increase/reduce volume
③ Horizontal sensor buttons:
Increase/reduce brightness
④ Charge of battery:
Battery completely charged
Battery is charging

Side Views
① AV:
, mm input for Audio/Video
② RV:
, mm input for rear view camera
③ RS232:
⑥ , mm serial interface
④ DC12V:
① For power supply 12 V DC
②
⑦ ③ ⑤ USB/TMC:
④ For connection with PC or for use with TMC
⑤ module.
⑥ Standby:
The current mode will be stored.
⑦ SD card reader

Back View
① RESET:
Device will be resetted after system freeze.
③ ② On/Off switch:
Internal battery will be turned off.
③ External GPS antenna:
MCX-connector for patch antenna.
④ Mounting:
Guidance for mounting bracket.

② ① ④
