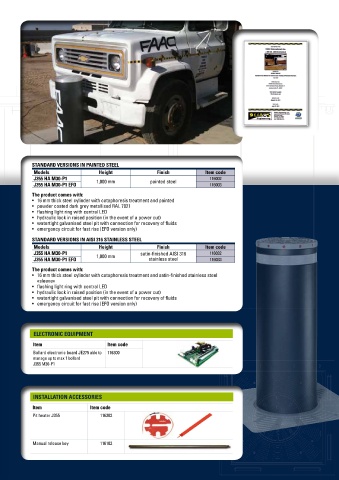

J355HA-M30-P1 bollard

certified for use in

perimeter security areas

1. cerTiFied according to Standard aSTM F 2656-07 M30
2. “Full optional” product; supplied equipped with the main

accessories

3. lock in raised position guaranteed even in the event of a power
cut

4. extreme care in the selection of materials
5. also available in the eFo (emergency Fast operation) version

for very fast rise

STANDARD vERSIONS IN PAINTED STEEL
Models Height Finish Item code
J355 HA M30-P1 116002
J355 HA M30-P1 EFO 1,000 mm painted steel 116003
The product comes with:
• 16 mm thick steel cylinder with cataphoresis treatment and painted
J355HA
• powder coated dark grey metallised ral 7021
• flashing light ring with central led
• hydraulic lock in raised position (in the event of a power cut)
• watertight galvanised steel pit with connection for recovery of fluids
• emergency circuit for fast rise (eFo version only)
STANDARD vERSIONS IN AISI 316 STAINLESS STEEL
Models Height Finish Item code
J355 HA M30-P1 satin-finished aiSi 316 116032
J355 HA M30-P1 EFO 1,000 mm stainless steel 116033
DIMENSIONS AND TECHNICAL SPECIFICATIONS
The product comes with:
drive Hydraulic actuator • 16 mm thick steel cylinder with cataphoresis treatment and satin-finished stainless steel
cylinder stroke 1,000 mm «sleeve»
cylinder diameter 355 mm • flashing light ring with central led
cylinder material Steel S355Jr eN10210 (16 mm thickness) • hydraulic lock in raised position (in the event of a power cut)
cylinder surface treatment cataphoresis and polyester powder paint, dark grey • watertight galvanised steel pit with connection for recovery of fluids
metallised ral 7021 • emergency circuit for fast rise (eFo version only)
Sleeve material (stainless steel special vers.) Satin-finished aiSi 316
cylinder top part (head) aluminium ral 9006
rise time about 6 sec/standard version - about 1.5 sec/eFo version
descent time (standard) about 2 sec ELECTRONIC EQUIPMENT
Hydraulic pump power supply 230 Vac +6% - 10%; 50/60 Hz
Power consumption 1,200 W Item Item code
Maximum expressed force 5,000 N Bollard electronic board Je275 able to 116300
J355HA
Junction box protection rating iP 66 manage up to max 1 bollard
recommended Use Use in security areas J355 M30-P1
Standard refracting strip Height 55 mm
impact resistance 150 Kjoules
Break-in resistance 656 KJoules (in compliance with Standards aSTM F2656-
07 - M30)
load class c25 (25t) INSTALLATION ACCESSORIES
Total weight 490 kg (bollard) + 250 kg (pit) Item Item code
operating temperature -15 °c / +55 °c Pit heater J355 116202
operating temperature with -40 °c / +55 °c
heater (optional)
Pit to be walled in 570x690x1665 mm
connection cable Standard 16+1 conductors, minimum section 1,5 mm (not supplied)
Maximum length 50 m Manual release key 116102
